Universal Mechanical Splice (No Tool)

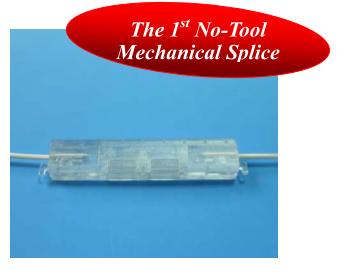

Mechanical Splice no-tool.jpg

With BroField patent, BroField Mechanical Splice was designed for splicing any 250 to 900 fibers. The tool function was built in Mechanical Splice so no additional tool is required for 900/900um or 900/250um splice. You can also use Economy Type with Tool for cost effective.



Using V groove technology, it requires no epoxy. With transparent body, the splice result can be seen by Fiber Checker immediately.  It has mean insertion loss 0.1dB and installation time of 30 seconds.

This is an ideal solution, either for outside plant or inside a building.



Features:

No Epoxy required

No Tool or Jig required

Transparent body for immediate   connecting confirmation

Universal for 250 or 900 um Fibers

30 seconds for connecting

Mean Insertion Loss 0.1 dB

Releasable after Connecting







 Specifications

Fiber Size

250 or 900 um

Assemble Time

30 seconds (after preparing fiber ends)

Mean Insertion Loss

0.1 dB

Return Loss (dB), Typical

-50

Pull Strength (N), Typical

5N

Operating Temperature (

-40 ~ +70

Materials

Engineering Plastics & Index matching gel

Dimension, LxWxH (mm)

38 x 3.8 x 6.5

Ordering Information:

Part number

Description

Splicing Fibers

Tool is

MSP-21

Mechanical Splice for Optical Fiber (No Tool)

900/900; 250/900

Optional

MSP-31

Mechanical Splice for Optical Fiber (Economy)

900/900; 250/900; 250/250

Must

MST-25

Tool for Mechanical Splice

NA

NA



Contact Person:  Frank Huang     0988-238-989

Email:  frank88.huang@hotmail.com
