PLC Splitter Modules

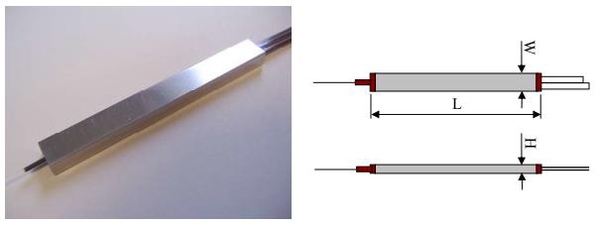

PLC Splitter Modules.jpg

BroField supplies high performance PLC (Planar Lightwave Circuit) Splitter Modules which comply with Telcordia generic requirements, GR-1209-CORE and GR-1221-CORE. A single mode MxN splitter has one or two input ports and N output ports for dividing an optical signal.



Environmental Reliability Tests Comply with Telcordia generic requirements, GR-1209-CORE and GR-1221-CORE.





Specification

Operating Wavelength (nm)

1260 ~1650

Port Numbers, 1xN / 2xN

4

8

16

32

Insertion Loss (dB), Max.

7.2

10.5

13.5

16.9

Uniformity (dB), Max.

0.6

0.8

1.2

1.5

PDL (dB), Max.

0.20

0.20

0.20

0.20

Pigtails (m)

1 (Input : Bare fiber / Output : Ribbon fiber)

Operating Temperature (℃)

-40 ~ +85 *

Directivity (dB), Min.

55

Dimension, LxWxH (mm)

40 x 4 x 4

50 x 7 x 4



*       -20 ~ +70℃  for 3mm cable package.

**      Specifications are subject to change without notice.

***    Listed above is only for typical products, custom design is also available.

Contact Person : Frank Huang

Email Frank88.huang@hotmail.com 0988-238-989
