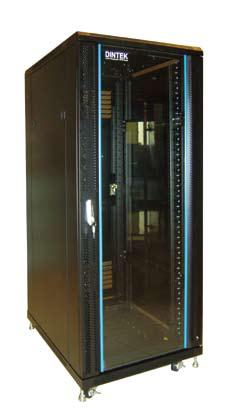

Floor Stand Network Cabinets (42U)


Cabinet DINTEK.jpg

19" Cabinets DINTEK
 Exquisite design with precise dimensions and craftsmanship
 Tempered glass door with popular black color
 Leveling stands and castor supports
 Strong design to give a static carrying capacity of 500KG
 Several lockable wiring holes at top and bottom with adjustable bottom hole
 Optional installation of base enables the cabinet to stay in a fixed position while meeting

requirements of under-base cable entry/ventilation and prevention
 Removable side, front and rear doors
 Full set of optional accessories

 Material : SPCC cold rolled steel
 Thickness of steel:
Mounting profile: 2.0mm;
Frame: 1.2mm
 Surface Finish: Degreased, Washed with acid,Phosphor treatment, Spraying

 ANSI/EIA RS-310-D,
 DIN41491, PART1,
 IEC297, PART7,
 GB/T3047.2-42,
 Compatible with 19” International Standards, ETSI

Fan module

Fan Module DINTEK.jpg

"U"marked mounting profile

U marked mounting profile DINTEK.jpg

Advanced spring locker

Advanced spring locker DINTEK.jpg

Removable side door


 Lockable cable entry

Lockable cable entry DINTEK.jpg

Earthing kit

Earthing kit DINTEK.jpg

LAN Cabling Systems

Contact Person: Frank Huang

Mobile: +886-988-238-989

email: frank88.huang@gmail.com
