ETouch IR

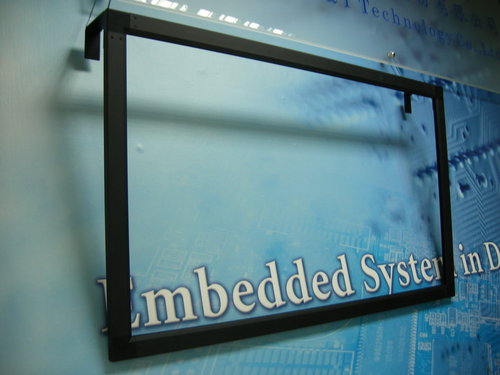

Infrared Touch Screen with Aluminum Frame,

Suitable for Interactive Billboard (ODM/OEM service)

Infrared touch screen

ET&T offer total assurance with our complete range of IR (infrared)

touch screen from small to large size which is tailored to meet the needs

for every IR solution demand (ODM/OEM service).

The large size of ETIR touch can reach to 80 inch and

respond rate is up to 95 reports per second.

Specification

Features

Applications

Touch Activation Force	No minimum force
Typical Accuracy	2 mm
Touch Point Density (IC)	4096 x 4096
Response Time	95 RPS
Temperature	Operating: -20ºC~70ºC / -4ºF~158ºF Storage: -40ºC~85ºC / -40ºF~185ºF
Relative Humidity	Operating: 0%~95% non-condensing Storage: 0%~95% non-condensing
Operating Voltage	Below 47”and 47” DC 5.0V (from USB) over 47” DC 5.5V ~ 6V (from Adapter)
Driver O.S. support	Win2000 / XP / Vista / Window 7.0(WHQL)/ Linux & Mac
Controller	On Flat (no extra board)
Controller Interface	USB 2.0
Housing	Aluminum frame in black color

● 100% light transmission (protection panel is optional)
● Long-lasting
● Most reliable and latest touch screen technology
● Nearly all kinds of stylus materials can be employed
● Extremely fast response time(Up to 95 rps)
● HID firmware

● Kiosks
● Interactive advertisement-Billboard
● Show room
● Education
● Navigator system
● Presentation tool
● White board
● Medical application
● Game

Map tool operating with IR touch

Hand writing with IR touch

Drawing with IR touch

Fixed Size Products (16:9) Unit: mm x mm

Size	Model No.		Active Area	Frame Outside
26	ETIR26	Horizontal	583.4	665.4
26	ETIR26	Vertical	333.3	415.3
27	ETIR27	Horizontal	599.0	681.0
27	ETIR27	Vertical	333.3	415.3
32	ETIR32	Horizontal	703.5	785.5
32	ETIR32	Vertical	401.4	483.4
37	ETIR37	Horizontal	823.1	905.1
37	ETIR37	Vertical	463.8	545.8
42	ETIR42	Horizontal	932.3	1014.3
42	ETIR42	Vertical	526.2	608.2
46	ETIR46	Horizontal	1026.4	1108.4
46	ETIR46	Vertical	578.7	660.7
47	ETIR47	Horizontal	1042.0	1124.0
47	ETIR47	Vertical	588.6	670.6
52	ETIR52	Horizontal	1156.4	1238.4
52	ETIR52	Vertical	651.5	733.5
55	ETIR55	Horizontal	1213.6	1295.6
55	ETIR55	Vertical	682.7	764.7
56	ETIR56	Horizontal	1250.0	1332.0
56	ETIR56	Vertical	703.5	785.5
57	ETIR57	Horizontal	1255.2	1337.2
57	ETIR57	Vertical	708.7	790.7
65	ETIR65	Horizontal	1432.5	1514.5
65	ETIR65	Vertical	807.5	889.5
