Quick Assembly Connector (No Tool)

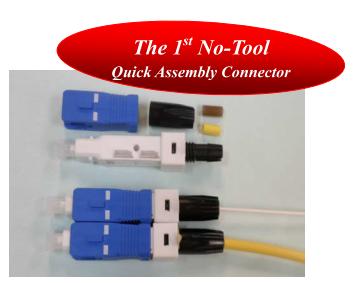

Quick Assembly Connector no-tool.jpg

BroField’s Quick Assembly Connector (also named “No-Polish Connector” , “Pre-polish Connector” or Fast Connector”) is an easy-to-install device. No tool or jig is required. It is universal for 250um / 900um / 2.0mm / 3.0mm / Flat Cable.

With BroField patent, it was designed for fast termination with pre-polished connector. Using V groove technology, it requires no epoxy. With transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for outside plant or inside a building.

Features:

․Universal for 250um / 900um / 2.0mm / 3.0 mm / Flat Cable.

․Pre-polished connector

․No epoxy required

․No Tool or Jig required

․Transparent body for immediate connecting

confirmation

․30 seconds for connecting

․Mean Insertion Loss 0.1 dB

․Releasable after connecting

․Customization for other fibers

Specifications:

Cable Siz e	250um / 900um / 2.0mm / 3.0 mm / Flat Cable
Assemble Time	30 seconds (after preparing fiber ends)
Insertion Loss (dB), Typical	0.1
Return Loss (dB), Typical	-50
Pull Strength (kgf), Typical	0.5kgf (900um); 6kgf (3.0mm); 1kgf (Flat Cable)
Operating Temperature (℃)	-40 ~ +70
Materials	Engineering Plastics & Index matching gel

Purchasing Information:

Part number	Description	Housing Color
QSC-09	SC Quick Assembly Connector SM	Blue
QSC-50	SC Quick Assembly Connector MM 50um	Beige
QSC-62	SC Quick Assembly Connector MM 62.5um	Beige
N/A	SC Quick Assembly Connector (Customization for other fibers or housing colors)	N/A
