Great expansion unit for computers with extra connectivity demand

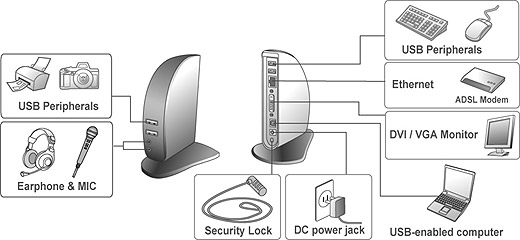

Extends connectivity to USB peripherals, Ethernet network, speaker, microphone, and even an additional monitor
Creative appearance complements any home or office space
Industry-standard security lock slot for anti-theft purpose
Windows Vista compatible
Plug-and-Play
Hot pluggable; add or remove devices without system reboot
Resumes from hibernation and suspend modes

System Requirements

With CPU at 1.2GHz or higher processor clock. Intel Pentium/Celeron family, or AMD K6/Athlon/Duron family, or compatible processor
512 MB of RAM
USB 2.0 port
30MB of available disk space
Windows® 2000 SP4, XP SP2, Vista™, Win 7

To play DVD on the add-on monitor, in addition to the requirements above, the following requirements should also be met:

With dual core CPU at 2.0 GHz processor clock
The adapter screen resolution be set to 800x600 with 16bit color

Specifications

General

Host Interface

USB 2.0

Operating System Support

Windows 2000 SP4, XP SP2, Vista, Win 7
(32-bit edition only for all)

Ports and Connectors

Upstream

1 x Upstream USB 2.0 Port (Type B female Connector)

USB Hub Downstream

4 x Downstream USB 2.0 Port (Type A female connector)

Ethernet

1 x Ethernet Port (10/100 Base-T Ethernet RJ-45 connector)

Video

1 x DVI-I Port (24pin + 5pin Female Connector)
or
1 x VGA Port (HDDE 15pin Female Connector)

Audio

1 x microphone (3.5 mm stereo audio in)
1 x headphones/speaker (3.5 mm stereo audio out)

Security Lock Slot

Industry-standard Kensington® security slot

LED

Power LED (Blue)

On: Power is supplied to the docking station.
Off: No power is supplied to the docking station.

USB Hub LED (Green)

On: Any of the four USB downstream ports is connected to a USB device.
Off: No USB device is connected.

Power

Power Adapter

Input: AC 100-240V, 50~60 Hz
Output: DC 5V / 2.5A

Power Mode

Self-powered

Ethernet Component

Network Standards

IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-T

Data Transfer Rates

Ethernet: 10Mbps/20Mbps (Half/Full Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex)

RAM

Embedded 20KB SRAM for RX packet buffering and 20KB SRAM for TX packet buffering

Video Component

Supported Modes

Extended Desktop (Default), Mirrored Desktop, Primary Display

Resolutions, Refresh Rate and Color Depth

Color Depth Resolution	Refresh rates at 16 bit color quality	Refresh rates at 32 bit color quality
640x480	60 72 75	60 72 75
800x600	56 60 72 75 85	56 60 72 75 85
1024x768	60 75 85	60 75 85
1280x960	60 85	60 85
1280x1024	60 75 85	60 75
1360x768	60	60
1366x768	60	60
1368x768	60	60
1400x1050	60 75 85	60 75 85
1440x900	60	60
1600x1200	60	60
1680x1050	59 60	59 60

Audio Component

Output

2 CH DAC output
DAC sampling rate from 8KHz, 16KHz, 44.1KHz to 48KHz with 16-bit resolution
Earphone buffer driving for output

Input

2 CH ADC Input
ADC sampling rate from 8KHz, 16KHz, 44.1KHz to 48KHz with 16-bit resolution
Digital Linear Microphone Gain Control function (-6db~33db)

Physical Specifications

Housing Material

ABS (Plastic)

Dimensions

Main body without base: 35 (W) x 90 (D) x 153 (H) mm
Main body with base: 86 (W) x 110 (D) x 160 (H) mm

Weight

Approximately 204g (including base)

Environmental Specifications

Operating Temperature

10-40^oC

Storage Temperature

-10~80^oC
