USB 2.0 EXTERNAL GRAPHICS CARD WITH DVI INTERFACE

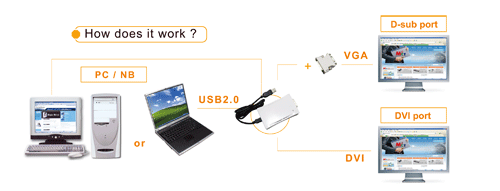

USB Graphics Adapter USB-DVI  How to work.gif

2nd Display

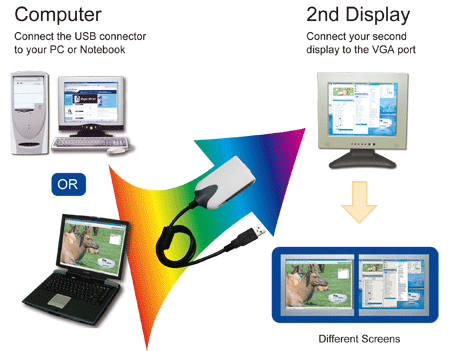

 USB Graphics Adapter USB-VGA How to work.gif



Multi Display

USB Graphics Adapter How to work.gif

INTRODUCTION
Thank you for purchased the USB 2.0 DVI-I ADAPTER. The USB 2.0 DVI-I
Adapter enables you to connect one or multiple display devices (CRT/LCD monitor,
projector) to your desktop or notebook PC. The connected display can act as
mirrored or extended desktop of the main display on your PC. The flexibility of the
common USB 2.0 technology saves the need to open the computer or struggling
with compatibility issues related to the VGA card.



USB-DVI Display Adapter, the amazing solution that allows you to attach additional display to PC or laptop without annoying of taking your computer apart. You can effectively double your working space through USB 2.0 port. Primary, extended, mirror and rotation modes are available for your preference for productive job.

 Do not let your old VGA monitor cover with dust and lie in garage. No matter you want to attach VGA interface monitor or add a monitor that is with latest DVI technology, just simply hook up the connector and plug the USB-DVI display adaptor into an available USB port on your PC. You have your desktop expanded!

FEATURES




Design for display devices connecting to PC/Laptop

Compliant with USB 2.0 specifications
Plug-and-Play compliant
Supports Suspend and Hibernation modes
Support Function:
  Display modes: Primary, Extended , Mirror
  Display Rotation: 0°, 90°, 180°, 270°
Resolution up to 1680 x1050
Compact design
Window 2000/ XP/ VISTA compatible

It can support the LCD or CRT monitor; it can attach the DVI interface LCD or CRT monitor and
it supports five kinds of selections, Primary, Extended, Off, Mirror and Rotation by “UD” icon.

“Primary” Mode
The system’s main graphics adapter will automatically switch to act as the
secondary graphics adapter and the main screen will now work as the extended
desktop. The monitor connected to the USB 2.0 DVI-I Adapter will now act as the
primary Windows desktop. Please be advised that some display utility and drivers
that shipped with certain AGP and built-in display adapters may prevent this option
from working on some systems. You can disable the other utility program (usually
found in the same toolbar located on the bottom right hand corner) to make this
function work properly.

“Extended” Mode (Default)
By default, the monitor connected to USB 2.0 DVI-I Adapter will work as,
“Extended Desktop” which extends the primary Windows desktop of your system.
You can change the relative position of this extended desktop under the Display
Properties.

“Mirror” Mode
By setting this mode, the Windows desktop will be mirrored/replicated to the
secondary CRT/LCD monitor. The screen resolution setting on the secondary
monitor will follow the primary screen’s resolution. For example, if the primary
resolution is 1024x768x32bit, and the secondary monitor’s resolution will be the
same. But if the selected resolution setting is not supported by the primary screen,
a warning dialogue box will be displayed and the suggested screen resolution will
be shown.

“Rotation” Mode
This feature enables setting the orientation of the secondary CRT/LCD monitor. Several options such as “0
degrees”, “90 degrees”, “180 ” or “270 degrees” are available under the Extended or Primary mode.

“OFF” Mode This option disables the USB 2.0 DVI-I Adapter on the system.

SUPPORTED COMMON DISPLAY RESOLUTION:

Aspect

Ratio Resolution

VGA

DVI

16:10

1920 * 1200

16

N/A

16:9

1920 * 1080

16

N/A

16:10

1680 * 1050

16, 32

16, 32

16:10

1440 * 900

16, 32

16, 32

16:10

1280 * 800

16, 32

16, 32

15:9

1280 * 768

16, 32

16, 32

5:4

1280 * 1024

16, 32

16, 32

4:30

1600 * 1200

16, 32

16, 32

4:30

1400 * 1050

16, 32

16, 32

4:30

1280 * 960

16, 32

16, 32

4:30

1152 * 864

16, 32

16, 32

4:30

1024 * 768

16, 32

16, 32

4:30

800 * 600

16, 32

16, 32

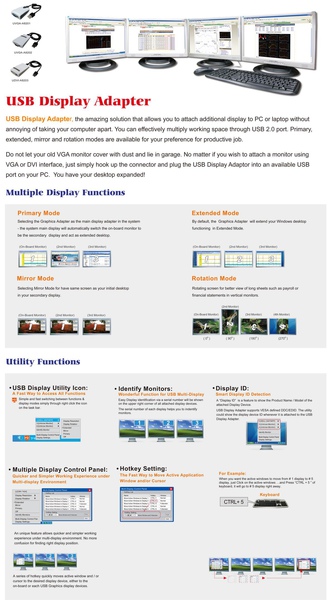

USB Display Adapter.JPG
